Details

V+ series dual worktable fully enclosed laser cutting machine

Model 3015 4020 6020 6025 8025
Working size 3000*1500mm 4000*2000mm 6000*2000mm 6000*2500mm 8000*2500mm
Max moving speed 200m/min
Max acceleration 2.8G 1.8G
Positioning accuracy 0.05mm
Repetition positioning accuracy 0.03mm
Power of laser 15000W/12000W/10000W/8000W/6000W/4000W

The above data is for reference only and is subject to the actual product.

  • Fully enclosed protection


    Fully enclosed glass protection to prevent laser damage to people;

    The environmentally friendly automatic dust collection system, which shows the concept of green technology;

    Intelligent monitoring system to reduce accident rate

  • dual-sided, six-degree-of-freedom guide rail locking


    Realize the comprehensive positioning of guide rail, with high quality machining process

    Stable machining accuracy, efficient cutting ability, precise positioning

  • Auxiliary gas low pressure alarm


    Provide real-time pressure value,When the pressure value is lower than a certain value,

    the abnormal information is pushed.So as to replace the gas timely, and ensure the cutting effect and cutting precision

  • Core Technology

    Real-time monitoring and early warning protection for worktable and alternative worktable Automatic lubrication, automatic worktable switch, and other functions. Support origin saving

    Automatic zoom laser cutting head The laser head is adjusted with two-point alignment, and the focus adjustment is driven by imported motor. In terms of perforation, the efficiency is significantly improved. The lens are protected in drawer type for easy replacement

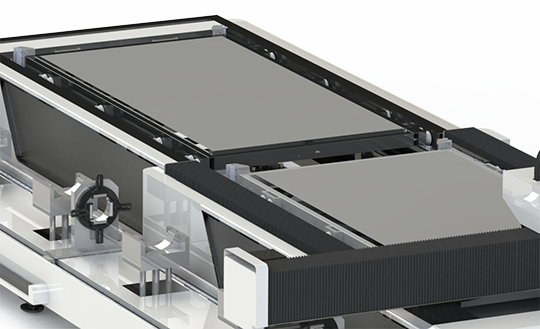

    Alternative dual worktable Annealed with large annealing furnace to relieve stress.The traditional process technique is used to temper the main body of the laser machine, structural steel welding, heat treatment and surface treatment.Cast with thickened steel plate, makes strong structure, strong deformation resistance, stable and durable.Alternative dual worktable, higher efficiency

    Meet the cutting requirements of different metal plates Support many functions such as scanning cut, frog jump, automatic edge-tracking, common edge cutting, breakpoint return, follow-up control, going back.Cutting accuracy of ±0.55mm, slit length 0.15mm, no scraping, no burr, smooth cut surface


    Basic Functions

    Product appearance design

    HD dual cameras Monitoring in sections, no blind corner in the processing area, monitoring every point at any time, intuitive processing, no danger in operation, controllable process

    Intelligent control software Intelligent layout for cutting graphics;Multi-type graphics import;Automatic optimization of cutting sequence; Intelligent edge-tracking, automatic positioning;Improve the utilization of materials, reduce waste; Simple and fast system operation, accurate cutting instructions, making better user experience

    Intelligent alarm system The multi-directional abnormal alarm of the device is directly transmitted to the panel, the device fault is known in advance, and the hidden danger is reduced, make the equipment abnormal troubleshooting efficiency doubled

    Display of cut products

  • 微尔激光

    VIOOO Laser R&D and production base

    with modern production workshop and necessary equipments

    Nowadays, with the increasing development of science and technology, as a mature CNC equipment manufacturing enterprise, VIOOO Laser will continue to adhere to the business philosophy of “survive by quality, develop by reputation”, the management attitude of“rigor and pragmatism”, and the mission of improving production efficiency by technological innovation, to provide customers with better CNC equipment and solutions.

    VIOOO Laser is on the way to success.You are on the way to success too accompanied by VIOOO Laser.
